Brand Name : | Zoomlion |
Model Number : | ZLJ5419THB |
Certification : | ISO90001.SAE |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 10 units per month |
Delivery Time : | 7-20 working days |

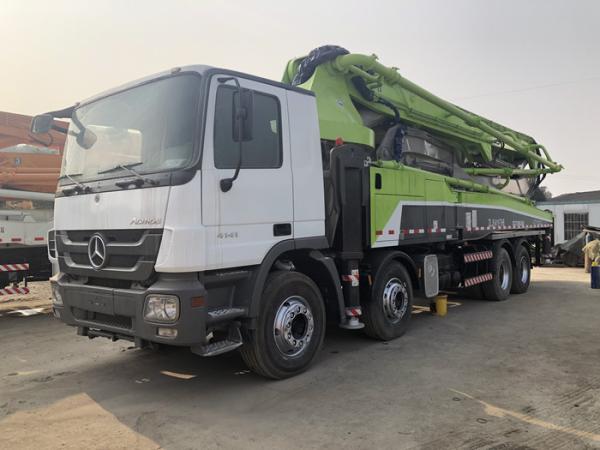

52M Used Concrete Pump Truck Good Quality Refurbishment Machine
Truck Pumps 52X-6RZ
• Compact in design, 52m pump mounted on a 4-axle truck.
• Active boom vibration control technology(ABC):All-position active
vibration reduction technology of boom, reducing vibration by 50%.
More stable boom, more safety.
• Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably, reliably and safely.
• Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
• Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Parameter:
Model | Unit | 52X-6RZ | |
---|---|---|---|
Pump Unit | Maximum theorical output | m3/h | 180 |
Maximum pressure on concrete | bar | 110 | |
Conc. cylinders (diam. x stroke) | mm | 260x2100 | |
Concrete hopper capacity | L | 600 | |
Hydraulic circuit | Closed | ||
Boom Section | Maximum vertical reach | m | 51.1 |
Maximum horizontal distance | m | 45.8 | |
Minimum unfolding height | m | 13.1 | |
Section numbers | 6 | ||
Rotating angle | ±270° | ||
End hose lenght | m | 3 |
![]() |
