Focusing on second-hand concrete machinery for 15 years, we are determined to provide global customers with high-quality and low-cost products
4 Years
| Ask Lasest Price | |
| Brand Name : | Sany |
| Model Number : | SY5419THB |
| Certification : | ISO90001.SAE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 10 Units Per Month |
| Delivery Time : | 7-20 Working Days |

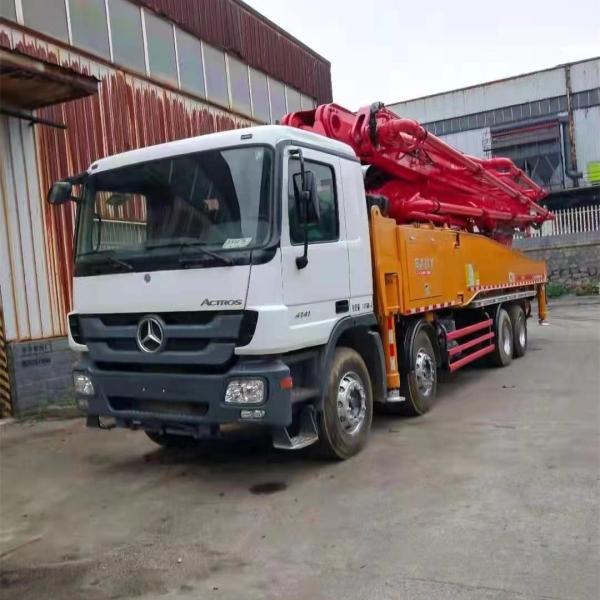

For Construction Sany 52 Meter Benz 2012 Year Used Concrete Pump Truck
1. Structure type: 52X-6RZ
2. Placing depth: 52m
3. Max. horizontal distance : 48m
4. Max. placing depth: 37.6m
5. Slewing angle: ±270°
6. Boom number: 6
1.Second Hand Sany Concrete Stationary Pump Truck
2.Second Hand Sany Concrete Pump Truck
3.Sany Germany Concrete Pumps Truck
| Model | Unit | 52X-6RZ | |
| Pump Unit | Max. Theor. output | m3/h | 180 |
| Max. Theor. concrete output Pressure | MPa | 9 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | 27 | |
| Hopper capacity | L | 600 | |
| Filling height | mm | 1540 | |
| Hydraulic system type | closed loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.×stroke | mm | φ130×2100 | |
| Concrete cylinder dia.×stroke | mm | φ230×2100 | |
| Hydraulic oil cooling | Wind cooling | ||
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
FAQ
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5:What spare parts can you supply?
All kinds of spare parts of zoomlion,sany. etc.
