    300KW 52m Truck Mounted Concrete Pump Hydraulic System 2012 Year

    Ask Lasest Price
    Brand Name : Zoomlion
    Model Number : ZLJ5419THB
    Certification : ISO90001.SAE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 units per month
    Delivery Time : 7-20 working days
    • Product Details
    • Company Profile

    300KW 52m Truck Mounted Concrete Pump Hydraulic System 2012 Year

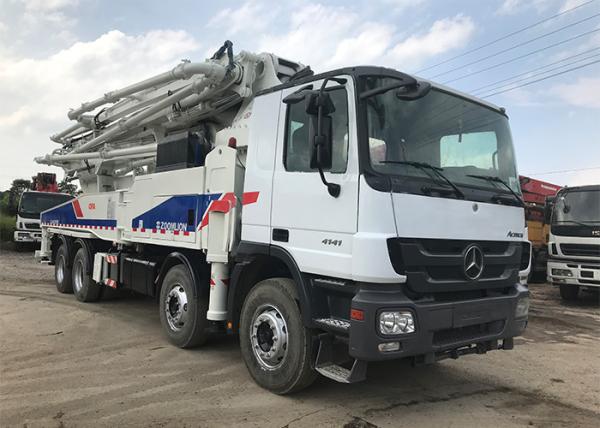

    2012 Year Used Model Actros 4141 Benz 52m White Concrete Boom Pump Truck


    * Assembly on standard 4 axles chassis
    * 5 sections placing boom, “RZ” folding system, FEM designed
    * Fully hydraulic outrigger controls on both sides of the truck
    * Front X-type outriggers and swing-out rear outriggers
    * Pumping unit with open hydraulic circuit
    * Fully-hydraulic switch over system
    * MPS (Micro Pressure Shock) reversing buffering technology
    * S-tube

    SPECIFICATION
    Chassis
    Chassis brand
    Mercedes Benz
    Driving Type
    Left Hand Driving
    Chassis model
    ZLJ5419THB
    Overall dimensions (L´W´H)
    13670*2500*4000mm
    Overall weight
    40900KG
    Axle numbers
    4
    Emission standard
    Euro 3
    Pumping unit technical data
    Theoretical output (rod/piston side)( m3/h)
    180
    Delivery pressure (rod/piston side)( MPa)
    9Mpa
    Hydraulic circuit
    Open
    Transfer tube
    S tube
    Placing boom technical data
    Max. vertical reach(m)
    52
    Max. horizontal distance (from center of slewing axis) (m)
    48
    Section numbers
    6

    Packaging Details:

    All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER


    1. What is your main product?

    Trailer concrete pumps/concrete mixer pump/truck concrete pump/truck concrete pump boom/Wet shotcrete machine/Concrete placing boom/concrete mixer truck/concrete mixing plant


    2. What is your MOQ?

    One Set is ok for your trail order


    3. What is your price?

    Please tell us the products model and quantity required, as well as your email, our sales responsible will share with you the best price.


    4. What is the delivery time?

    Most of the order will within 15days, sometimes depend on your quantity and our present products plan.
