Focusing on second-hand concrete machinery for 15 years, we are determined to provide global customers with high-quality and low-cost products
4 Years
| Ask Lasest Price | |
| Brand Name : | Zoomlion |
| Model Number : | ZLJ5420THB125-47 |
| Certification : | ISO90001.SAE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 10 units per month |
| Delivery Time : | 7-20 working days |
Concrete pump truck is a kind of machine which uses pressure to transport concrete continuously along the pipeline. It is composed of pump body and delivery pipe. According to the structure, it can be divided into piston type, extrusion type and hydraulic diaphragm type. The pump body is installed on the chassis of the car, and then equipped with a retractable or flexible distributing rod, which forms the pump truck. The concrete pump truck is transformed from the chassis of truck. It is equipped with motion and power transmission device, pumping and mixing device, distributing device and other auxiliary devices. The power of the concrete pump truck transmits the power of the engine to the hydraulic pump group or the rear axle through the power transfer box, and the hydraulic pump pushes the piston to drive the concrete pump to work. Then the concrete is transported to a certain height and distance by using the distributing rod and delivery pipe on the pump truck.

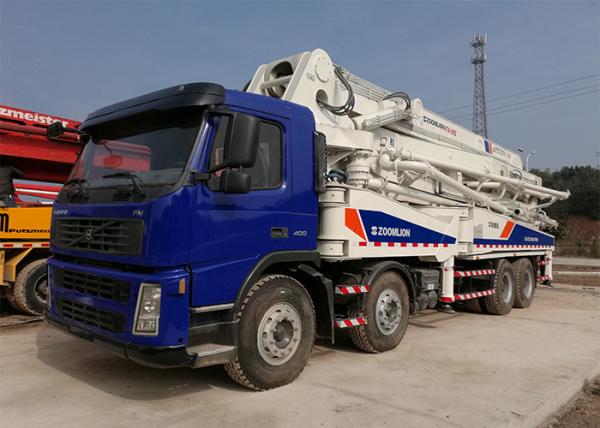

| Concrete Pump Information | Truck information of Concrete Pump | ||
| Type | BOOM CONCRETE PUMPS | Truck Brand | VOLVO |
| Brand Name | Zoomlion | Truck Model | FM400 |
| Pump Model | ZLJ5420THB125-47 | Truck Year | 2007 Year |
| Pump Year | 2008 year | VIN. | LZVABGLF5****** |
| Boom Length | 46.5 METER | Axle Config | 4 axle |
| Boom Section | 5 SECTIONS RZ FOLD | Truck Hours | 3000 hours |
| Vertical Reach | 46.2 METER | Engine Make | VOLVO |
| Horizontal Reach | 42.3 METER | Engine Type | Diesel |
| Max Concrete Output | 110 m3/h | Engine Model | |
| Conrete Press. | 6.5 Mpa | Max.Engine Power | 279KW |
| Radio Remote conctrol | concrete pump remote controller | Max. Speeds | 80 km/h |
| Condition | concrete pump but well condition | Total Weight | 39850kg |
| Recent Significant | Excellent condition, low hours | Dimension(L*W*H) | 12170*2500*3980mm |
| Repairs | Concrete pumps system | Maintenance | Changed all filters |
| Hydraulic System | Engine oil | ||
| Electrical System | Gear box oil | ||
| Changed Spare Parts | Tires | ||
| Checked Boom | Cab | ||
| Changed Seals | Driving testing | ||
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Q1: Why chose you?
A1: We have good after-sales services,you can find us at per 24 hours.
A2: Strictly testing and checking before shipping.
Q2: How to deal the order?
A1: Payment terms: T/T 30% as deposit, and 70% before delivery.
A2: We'll show you the photos of the products and packages before you pay the balance.
|
|
