| Brand Name : | Zoomlion |
| Model Number : | ZLJ5419THBK |
| Certification : | ISO90001.SAE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 10 units per month |
| Delivery Time : | 7-20 working days |

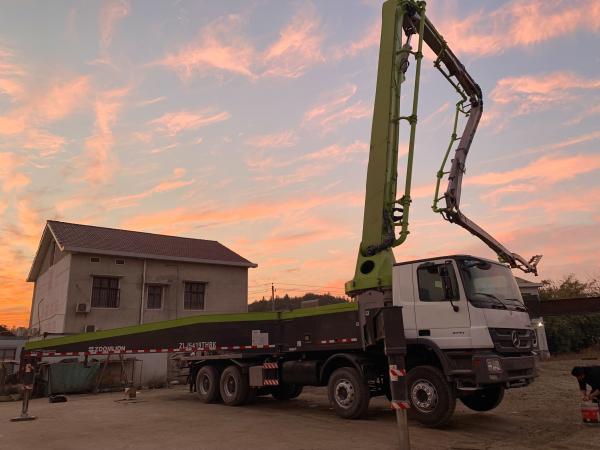

Zoomlion 60 Meter ACTROS 4141 Used Concrete Pump Truck For Transportation
(1) Boom with damping technology
(2) Stabilization control on boom
(3) Multilingual man-machine interface system
(4) PWM+CAN dual communication mode remote control
(5) Pumping flexible active control technology
(6) CE certified and fully complying to all EU safety standards
• Compact in design, 60m pump mounted on a 4-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 6 arms with unfolding height 14m
only,which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor, it
monitors the pump intelligently on working data
management,real-time diagnostics, alarm logging, and service
interval notice.
• Rich in configurations and high quality components.
• Boom with damping technology.
• Stabilization control on boom.
• Multilingual man-machine interface system
concrete pump concrete pump concrete pump concrete pump concrete pump concrete pump concrete pump concrete pump
| Concrete Pump Information | Truck information of Concrete Pump | ||
| Type | concrete pump truck | Truck Brand | BENZ |
| Brand Name | Zoomlion | Truck Model | Actros 4141 |
| Pump Model | ZLJ5419THB | Truck Year | 2012year |
| Pump Year | 2012 year | VIN. | WDAKHCAA55L****** |
| Boom Length | 60METER | Axle Config | 4 Axle |
| Pump Hours | 3000 hours | Mileage | |
| Boom Section | 6 SECTIONS RZ FOLD | Truck Hours | |
| Vertical Reach | 60 METER | Engine Make | BENZ |
| Horizontal Reach | 56 METER | Engine Type | Diesel |
| Max Concrete Output | 180 m3/h | Engine Model | |
| Conrete Press. | 11 MBar | Max.Engine Power | 300 kw |
| Barrel Size | 500 L | Max.EngineTorque | |
| Radio Remote conctrol | concrete pump remote controller | Transmission | BENZ |
| Radio Remote Brand | remote controller HBC | Max. Speeds | 80 km/h |
| Condition | concrete pump but well condition | Total Weight | 43870kg |
| Recent Significant | Excellent condition, low hours | Dimension(L*W*H) | 14350*2530*4000mm |
| Repairs | Concrete pumps system | Maintenance | Changed all filters |
| Hydraulic System | Engine oil | ||
| Electrical System | Gear box oil | ||
| Changed Spare Parts | Tires | ||
| Checked Boom | Cab | ||
| Changed Seals | Driving testing | ||
Operation of Boom
The operation of the cloth arm can be completed by the electric control cabinet or by the remote control.
1. Through the electronic control button and the outrigger
multi-way valve, all the outriggers are unfolded (half-extended
state is prohibited). Make sure that the whole machine is
completely fixed horizontally (the bubbles in the level gauges on
both sides should be in the middle).
2. Turn the "manual/remote control" switch on the operation panel
of the electric control cabinet to the remote control position;
Note: The functions of the remote control buttons are shown in the
instruction manual provided with the car.
3. If there is air in the boom hydraulic cylinders and pipelines,
there may be a danger of rapid falling when the boom is moved,
causing damage to equipment and personnel.
1: These machines are original?
Yes, our machine are all original.
2: Whether these machines are in good condition
Yes, we can offer you these machines details and videos, if necessary, you can visit our factory.
3: Do you have other services?
Our company’s aim to meet your satisfaction, our services including best price, shipping&packaging, book cargo space,help you buy parts .
4: How can we make a deal done?
The procedure mainly goes like this as the following steps:
checking machine-->if satisfied-->paying 30% deposit-->booking cargo space--clean the balance --loading-->getting the B/L.
|
|
