| Brand Name : | Sany |
| Model Number : | SYM5350THB |
| Certification : | ISO90001.SAE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 10 Units Per Month |
| Delivery Time : | 7-20 Working Days |

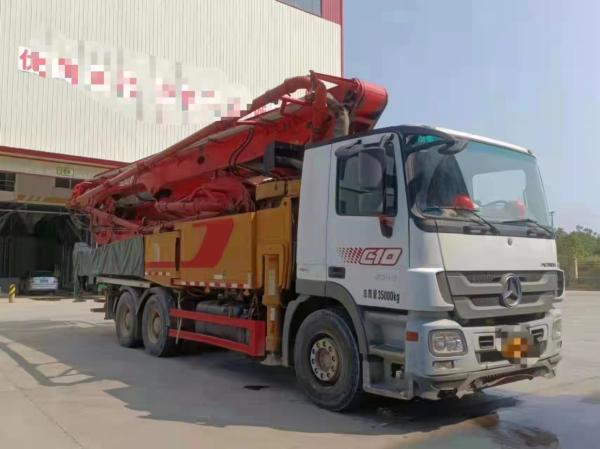

2019 Year Sany 52M C10 Used Benz Car Concrete Boom Pump Truck
Operation of Boom
The operation of the cloth arm can be completed by the electric control cabinet or by the remote control.
1. Through the electronic control button and the outrigger
multi-way valve, all the outriggers are unfolded (half-extended
state is prohibited). Make sure that the whole machine is
completely fixed horizontally (the bubbles in the level gauges on
both sides should be in the middle).
2. Turn the "manual/remote control" switch on the operation panel
of the electric control cabinet to the remote control position;
Note: The functions of the remote control buttons are shown in the
instruction manual provided with the car.
3. If there is air in the boom hydraulic cylinders and pipelines,
there may be a danger of rapid falling when the boom is moved,
causing damage to equipment and personnel.
| Concrete Pump Information | Truck information of Concrete Pump | ||
| Type | BOOM CONCRETE PUMPS | Truck Brand | Mercedes Benz |
| Brand Name | SY | Truck Model | Actros 4141 |
| Pump Model | SYM5350THB | Truck Year | 2019 Year |
| Pump Year | 2019year | VIN. | WDANHC***** |
| Boom Length | 52METER | Axle Config | 4 axle |
| Boom Section | 6 SECTIONS RZ FOLD | Truck Hours | 3000 hours |
| Vertical Reach | 52 METER | Engine Make | Actros |
| Horizontal Reach | 48 METER | Engine Type | Diesel |
| Max Concrete Output | 180 m3/h | Engine Model | |
| Conrete Press. | 12 Mpa | Max.Engine Power | 320 KW |
| Radio Remote conctrol | concrete pump remote controller | Max. Speeds | 80 km/h |
| Condition | concrete pump but well condition | Total Weight | 35000KG |
| Recent Significant | Excellent condition, low hours | Dimension(L*W*H) | 12130*2550*4000mm |
| Repairs | Concrete pumps system | Maintenance | Changed all filters |
| Hydraulic System | Engine oil | ||
| Electrical System | Gear box oil | ||
| Changed Spare Parts | Tires | ||
| Checked Boom | Cab | ||
| Changed Seals | Driving testing | ||
FAQ
Q1: Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2: What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3: What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4: What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5: What spare parts can you supply?
All kinds of spare parts of zoomlion,sany. etc.
|
|
